Next Generation Land Terminal –  Manpack

Scorpion

The Scorpion is a fully featured IP Manpack, designed to provide the ultimate in reliable, secure and mobile communications

The Scorpion can be supplied in X, Ku or Ka-Band with reflector sizes from 60cm to 1.0m. All the frequency and size options can still be packed away in a single carry case with all the equipment required to uplink including, the pointing aid, cables and power supply.

The latest in manufacturing methods and material selection has allowed the Scorpion to provide the ultimate in man-pack terminals.

The elevation head is completely captive and houses all the RF components which have been specified to operate in extreme weather conditions. The entire unit is IP65 rated, all the RF connections and control are completely sealed so no dangling wires or connections to be made.

The base unit contains the tripod, which has cantilevered gas strut legs that raise the base of the unit 120mm off the ground, mitigating the ground effect heating and allows the Scorpion to be used in wet and muddy conditions.

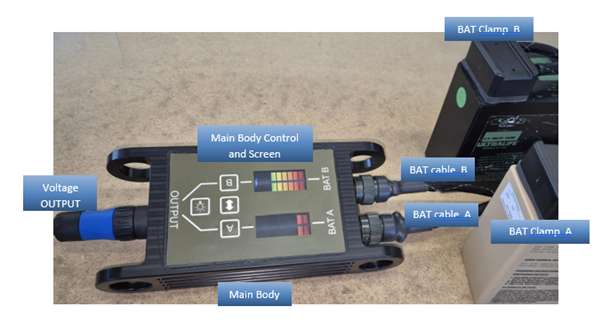

The Man-Pack can be powered from either AC mains (110 240 VAC), or direct from a DC source. We also have a battery pack option for our lower power terminals.

The Scorpion has the approval of several major commercial and military satellite operators including SES, GOVSAT and AIRBUS for use on SKYNET6.

Details

Antenna Size
Frequency Band
Auto-Pointing
MPAD Assisted
Weight
No. Cases
60cm, 80cm, 100cm
X, Ku, Ka
No
Yes
23kg (Option Dependent)
1 Case

Antenna Specifications

Antenna Material
Carbon Fibre
Packing Options
Backpack or Hardcase
Terminal Weight
Under 20kg with soft cases
Terminal Weight
(configuration dependent)
IP Modem
IDirect, Newtec, Teledyne, Q-flex, UHP, Comtech
DC in (24v)
Weatherproof (battery option)
Rx Monitor
SMA (female)
IP Interface
Weatherproof RJ45 connector
Storage Temperature
-40°C to +60°C
Operational Wind Speed
60km/hour (with ballast)
Operational Humidity
95% RH
Elevation Range
0° - 90°
Azimuth Range (fine)
+/- 25

Antenna Size

Antenna Size
60cm
80cm
100cm
Number of Petals
6
5
7
F/D
0.25
0.25
0.25

X Band

Tx Frequency
7.9-8.4 Ghz
7.9-8.4 Ghz
7.9-8.4 Ghz
Rx Frequency
7.25-7.75 Ghz
7.25-7.75 Ghz
7.25-7.75 Ghz
Gain Tx
32.7 dBi
35.0 dBi
32.7 dBi
Gain Rx
32.1 dBi
34.6 dBi
36.4 dBi
Pol 2 Port
Circular
Circular
Circular
Axial Ratio
<0.75 dB
<0.75 dB
<0.75 dB
Tx/Rx Port VSWR
>25 dB
>25 dB
>25 dB
BUC Power
<1.25:1
<1.25:1
<1.25:1
40W
40W
40W

Ku Band

Tx Frequency
13.75-14.5 Ghz
13.75-14.5 Ghz
13.75-14.5 Ghz
Rx Frequency
10.7-12.75 Ghz
10.7-12.75 Ghz
10.7-12.75 Ghz
Gain Tx
37.2 dBi
39.6 dBi
41.4 dBi
Gain Rx
35.7 dBi
38.3 dBi
40.1 dBi
Pol 2 Port
Linear
Linear
Linear
Axial Ratio
n/a
n/a
n/a
Tx/Rx Port VSWR
>35 dB
>35 dB
>35 dB
BUC Power
<1.5:1
<1.5:1
<1.5:1
25W(55W)
25W(55W)
25W(55W)

Ka Band

Tx Frequency
29.0-31.0 Ghz
29.0-31.0 Ghz
29.0-31.0 Ghz
Rx Frequency
19.2-21.2 Ghz
19.2-21.2 Ghz
19.2-21.2 Ghz
Gain Tx
43.2 dBi
45.7 dBi
47.6 dBi
Gain Rx
40.2 dBi
42.6 dBi
44.5 dBi
Pol 2 Port
Circular
Circular
Circular
Axial Ratio
<0.75 dB
<0.75 dB
<0.75 dB
Tx/Rx Port VSWR
>55 dB
>55 dB
>55 dB
BUC Power
Tx<1.25:1 , Rx<1.5:1
Tx<1.25:1 , Rx<1.5:1
Tx<1.25:1 , Rx<1.5:1
12W
12W
12W
